Klemmkupplung Kupferrohr
Klemverschraubung
Kupferrohr

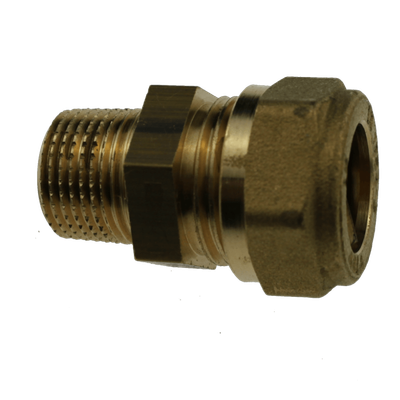

Puntstuk
Einschrauber AG
Male Adapter
Artikelnummer
R1000G001002
R1000G001003
R1000G001004
R1000G001202
R1000G001203
R1000G001204
R1000G001503
R1000G001504
R1000G001505
R1000G001804
R1000G001805
R1000G002204
R1000G002205
R1000G002206
R1000G002805
R1000G002806
Maat / Größe / Size
10 mm x 1/4"
10 mm x 3/8"
10 mm x 1/2"
12 mm x 1/4"
12 mm x 3/8"
12 mm x 1/2"
15 mm x 3/8"
15 mm x 1/2"
15 mm x 3/4"
18 mm x 1/2"
18 mm x 3/4"
22 mm x 1/2"
22 mm x 3/4"
22 mm x 1"
28 mm x 3/4"
28 mm x 1"

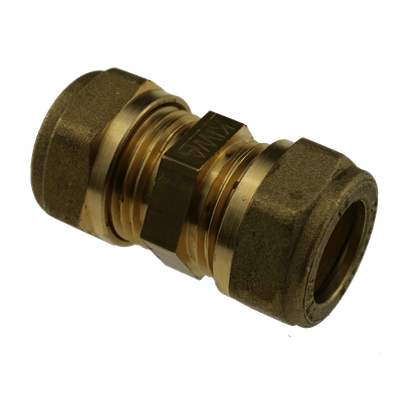

Sok
Gerader Verbinder
Straight Fitting
Artikelnummer
R1001G101000
R1001G121000
R1001G121200
R1001G151000
R1001G151200
R1001G151500
R1001G181501
R1001G221500
R1001G221800
R1001G222200
R1001G281500
R1001G282200
R1001G282800
R1001G101000
R1001G121000
R1001G121200
R1001G151000
R1001G151200
R1001G151500
R1001G181501
R1001G221500
R1001G221800
R1001G222200
R1001G281500
R1001G282200
R1001G282800
Maat / Größe / Size
10 mm x 10 mm
12 mm x 10 mm
12 mm x 12 mm
15 mm x 10 mm
15 mm x 12 mm
15 mm x 15 mm
18 mm x 15 mm
22 mm x 15 mm
22 mm x 18 mm
22 mm x 22 mm
28 mm x 15 mm
28 mm x 22 mm
28 mm x 28 mm

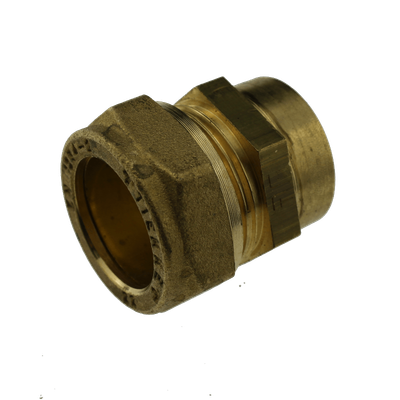

Schroefbus
Aufschrauber IG
Aufschrauber IG
Female Adapter
Artikelnummer
R1002G001002
R1002G001003
R1002G001004
R1002G001203
R1002G001204
R1002G001503
R1002G001504
R1002G001505
R1002G002204
R1002G002205
R1002G002206
R1002G002805
R1002G002806
R1002G001002
R1002G001003
R1002G001004
R1002G001203
R1002G001204
R1002G001503
R1002G001504
R1002G001505
R1002G002204
R1002G002205
R1002G002206
R1002G002805
R1002G002806
Maat / Größe / Size
10 mm x 1/4"
10 mm x 3/8"
10 mm x 1/2"
12 mm x 3/8"
12 mm x 1/2"
15 mm x 3/8"
15 mm x 1/2"
15 mm x 3/4"
22 mm x 1/2"
22 mm x 3/4"
22 mm x 1"
28 mm x 3/4"
28 mm x 1"

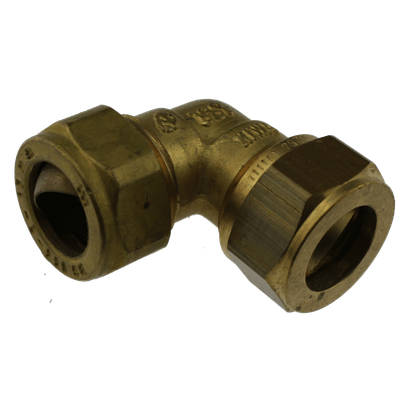

Knie 90°
Winkel 90°
Elbow 90°
Artikelnummer
R1003G101000
R1003G121000
R1003G121200
R1003G151200
R1003G151500
R1003G221500
R1003G222200
R1003G282200
R1003G282800
Maat / Größe / Size
10 mm x 10 mm
12 mm x 10 mm
12 mm x 12 mm
15 mm x 12 mm
15 mm x 15 mm
22 mm x 15 mm
22 mm x 22 mm
28 mm x 22 mm
28 mm x 28 mm

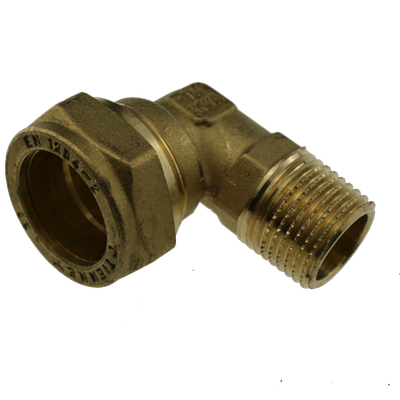

Puntstuk haaks
Winkel AG
Male Elbow
Artikelnummer
R1004G001003
R1004G001203
R1004G001204
R1004G001504
R1004G001505
R1004G002204
R1004G002205
R1004G002206
R1004G002805
R1004G002806
Maat / Größe / Size
10 mm x 3/8"
12 mm x 3/8"
12 mm x 1/2"
15 mm x 1/2"
15 mm x 3/4"
22 mm x 1/2"
22 mm x 3/4"
22 mm x 1"
28 mm x 3/4"
28 mm x 1"

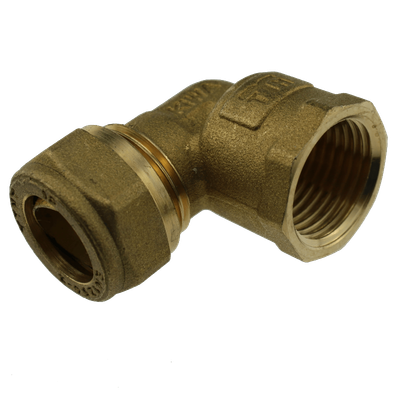

Schroefbus haaks
Winkel IG
Female Elbow
Artikelnummer
R1005G001203
R1005G001204
R1005G001503
R1005G001504
R1005G001505
R1005G002204
R1005G002205
R1005G002206
R1005G002805
R1005G002806
R1005G001203
R1005G001204
R1005G001503
R1005G001504
R1005G001505
R1005G002204
R1005G002205
R1005G002206
R1005G002805
R1005G002806
Maat / Größe / Size
12 mm x 3/8"
12 mm x 1/2"
15 mm x 3/8"
15 mm x 1/2"
15 mm x 3/4"
22 mm x 1/2"
22 mm x 3/4"
22 mm x 1"
28 mm x 3/4"
28 mm x 1"

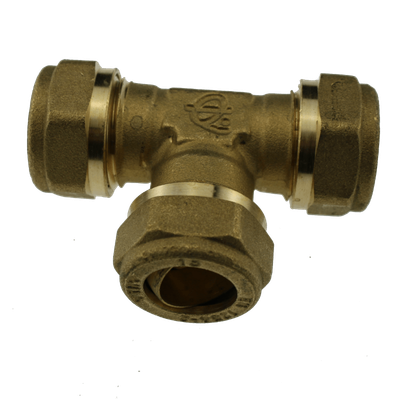

T-Stuk
T-Stück
T-Stück
T-Union
Artikelnummer
R1007G101010
R1007G121212
R1007G121512
R1007G151212
R1007G151215
R1007G151512
R1007G151515
R1007G152215
R1007G221515
R1007G221522
R1007G222215
R1007G222222
R1007G222822
R1007G281522
R1007G281528
R1007G282222
R1007G282228
R1007G282815
R1007G282822
R1007G282828
Maat / Größe / Size
10 mm x 10 mm x 10 mm
12 mm x 12 mm x 12 mm
12 mm x 15 mm x 12 mm
15 mm x 12 mm x 12 mm
15 mm x 12 mm x 15 mm
15 mm x 15 mm x 12 mm
15 mm x 15 mm x 15 mm
15 mm x 22 mm x 15 mm
22 mm x 15 mm x 15 mm
22 mm x 15 mm x 22 mm
22 mm x 22 mm x 15 mm
22 mm x 22 mm x 22 mm
22 mm x 28 mm x 22 mm
28 mm x 15 mm x 22 mm
28 mm x 15 mm x 28 mm
28 mm x 22 mm x 22 mm
28 mm x 22 mm x 28 mm
28 mm x 28 mm x 15 mm
28 mm x 28 mm x 22 mm
28 mm x 28 mm x 28 mm

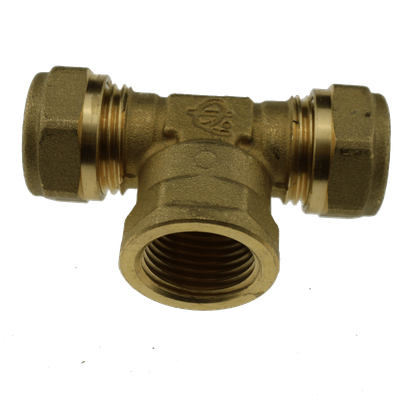

T-Stuk binnendraad
T-Stück IG
T-Union Female
Artikelnummer
R1009G120312
R1009G120412
R1009G150215
R1009G150415
R1009G220422
R1009G220522
R1009G220622
R1009G280428
R1009G280528
R1009G280628
R1009G120312
R1009G120412
R1009G150215
R1009G150415
R1009G220422
R1009G220522
R1009G220622
R1009G280428
R1009G280528
R1009G280628
Maat / Größe / Size
12 mm x 3/8" x 12 mm
12 mm x 1/2" x 12 mm
15 mm x 1/4" x 15 mm
15 mm x 1/2" x 15 mm
22 mm x 1/2" x 22 mm
22 mm x 3/4" x 22 mm
22 mm x 1" x 22 mm
28 mm x 1/2" x 28 mm
28 mm x 3/4" x 28 mm
28 mm x 1" x 28 mm

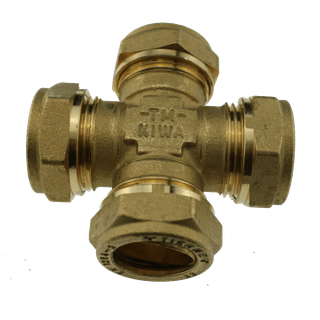

Kruisstuk
Kreuzverbinder
Kreuzverbinder
Cross
Artikelnummer
R1010G15151515
R1010G22151515
R1010G22152215
R1010G22222222
R1010G28282828
Maat / Größe / Size
15 mm x 15 mm x 15 mm x 15 mm
22 mm x 15 mm x 15 mm x 15 mm
22 mm x 15 mm x 22 mm x 15 mm
22 mm x 22 mm x 22 mm x 22 mm
28 mm x 28 mm x 28 mm x 28 mm

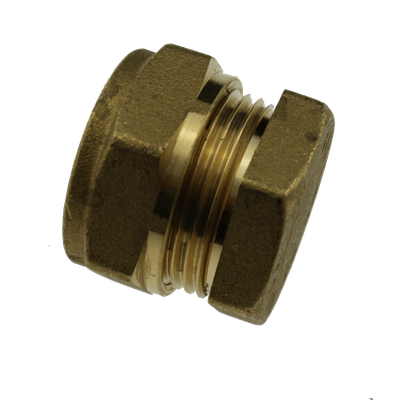

Eindkap
Endkappe
Endkappe
Endcap
Artikelnummer
R1035G1091
R1035G1203
R1035G1504
R1035G2261
R1035G2863
Maat / Größe / Size
10 mm
12 mm
15 mm
22 mm
28 mm

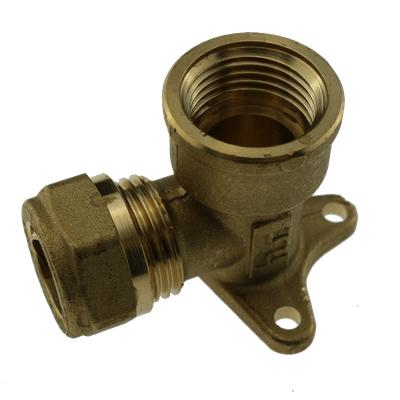

Muurplaat
Wandwinkel
Wallplate
Artikelnummer
R1106G001504
R1106G002204
R1106G002205
R1106G001504
R1106G002204
R1106G002205
Maat / Größe / Size
15 mm x 1/2"
22 mm x 1/2"
22 mm x 3/4"
15 mm x 1/2"
22 mm x 1/2"
22 mm x 3/4"

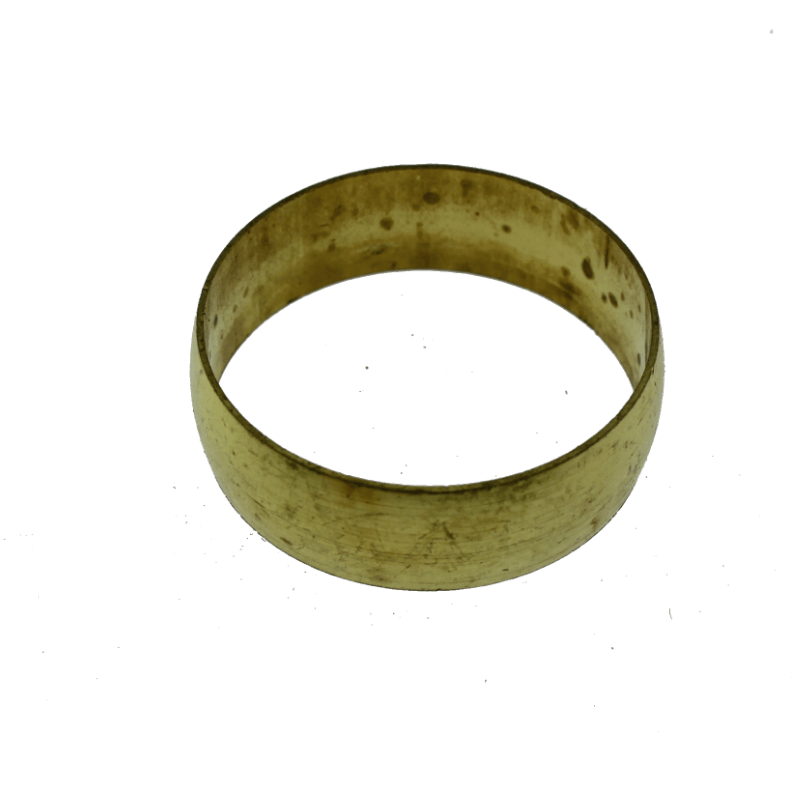

Knelring
Klemmring
Klemmring
Compressionring
Artikelnummer
1015G0815
1015G0822
1015G0928
Maat / Größe / Size
15 mm
22 mm
28 mm
15 mm
22 mm
28 mm
Technische Daten:
Druck
Temperatur
Min 0°C Max 95°C
