Flex Hoses
Flexible hoses
Flexible hoses with a stainless steel jacket.

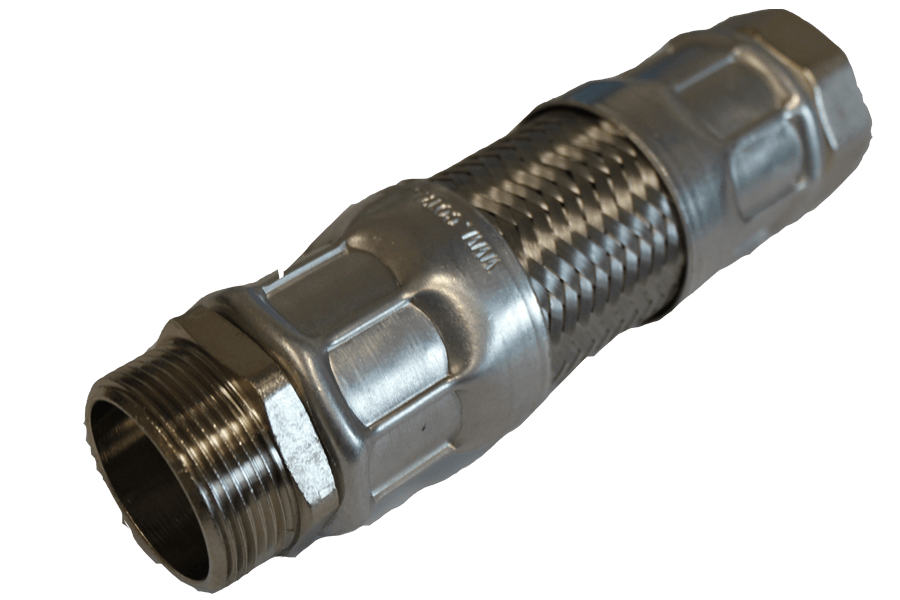

Flexible hose male thread x female thread. Many lengths available on request
Article number FSM04M04F100DN13 FSM04M04F200DN13 FSM04M04F300DN13 FSM06M06F0070DN19 FSM06M06F0100DN19 FSM06M06F0200DN19 FSM06M06F0300DN19 FSM07M07F0050DN25 FSM07M07F0070DN25 FSM07M07F0100DN25 FSM07M07F0200DN25 FSM07M07F0300DN25 FSM08M08F0070DN32 FSM09M09F0072DN40 FSM09M09F0300DN40
Maat
1/2"x1/2"
1/2"x1/2"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
1"x1"
1"x1"
1"x1"
1"x1"
1"x1"
11/4"x11/4"
11/2"x11/2"
11/2"x11/2"
1/2"x1/2"
1/2"x1/2"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
1"x1"
1"x1"
1"x1"
1"x1"
1"x1"
11/4"x11/4"
11/2"x11/2"
11/2"x11/2"
Length in cm 100 200 50 70 100 200 300 50 70 100 200 300 70 72 300
Flexible hose internal thread x internal threadMany lengths available on request
Article number FSM04F04F0025DN13 FSM04F04F0350DN13 FSM04F04F050DN13 FSM04F04F0100DN13 FSM04F04F0200DN13 FSM04F04F0250DN13 FSM04F04F0300DN13 FSM06F06F0050DN19 FSM06F06F0080DN13 FSM06F06F0100DN13 FSM06F06F0150DN14 FSM07F07F0100DN13 FSM08F08F0070DN32 FSM09F09F0070DN40 FSM06F03F0060DN10 FSM06F03F0120DN10 FSM06F03F0150DN10 FSM06F03F0160DN10 FSM06F03F0300DN10 FSM07F08F0800
Maat
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
1"x1"
11/4"x11/4"
11/2"x11/2"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
11/4"x1"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
1/2"x1/2"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
1"x1"
11/4"x11/4"
11/2"x11/2"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
11/4"x1"
Length 25 35 50 100 200 250 300 50 80 100 150 100 70 70 60 120 150 160 300 80

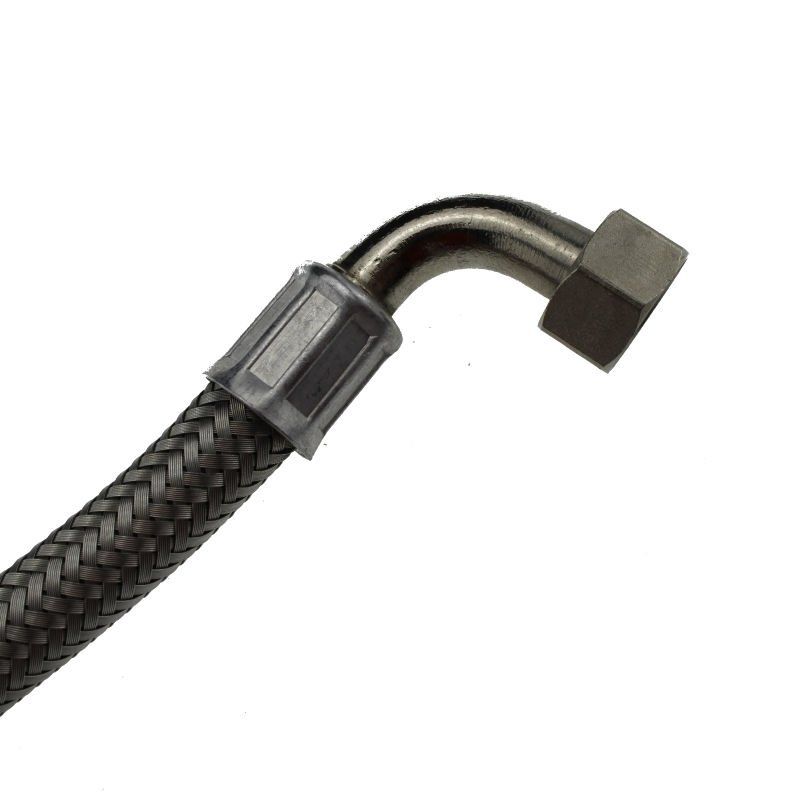

Flexible hose internal thread x internal thread angled. Many lengths available on request
Article number FSM04F04CF0050 FSM04F04CF0150DN13 FSM06F06CF0100DN13 FSM06F06CF0150DN10 FSM06F06CF0200DN13 FSM06F06CF0250DN10 FSM06F06CF0300DN10 FSM06F03CF0060DN10 FSM06F03CF0160DN10 FSM06F03CF0150DN10 FSM06F03CF0160DN10 FSM06F03CF0300DN10
Maat
1/2"x1/2"
1/2"x1/2"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
1/2"x1/2"
1/2"x1/2"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/4"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
3/4"x3/8"
Length 50 150 100 150 200 250 300 60 120 150 160 300
Technical data Pressure: 10 bar at 20°C Temperature: Max 90°C Material: Jacket Stainless steel Fitting Brass (nickel-plated) CW614-N Sleeve Aluminum
