Pump group with heat exchanger
Pump group with heat exchanger / Solar groups

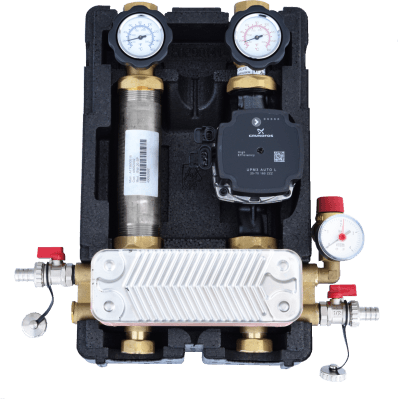

Pump group BW
Pump group BW DN25 is equipped with 2 ball valves with supply and return thermometers, non-return valve, safety group 2.5 bar with pressure gauge and a heat exchanger with insulation.
Technical data: Max Pressure: Max Temperature: Connection: Center to High:
8 bar
120°C
1" F
125 mm
120°C
1" F
125 mm
616156Pump group BW 20 with 20-plate heat exchanger, without pump 616157Pump group BW 20 with 20-plate heat exchanger, with pump Wilo Yonos Para 25/7616167 Pump group BW 30 with 30-plate heat exchanger, with pump Wilo Yonos Para 25/7616152 Pump group BW 20 with 20 -plate heat exchanger, with pump Grundfos UPM3 Auto L 25-70616162 Pump group BW 30 with 30-plate heat exchanger, with pump Grundfos UPM3 Auto L 25-70

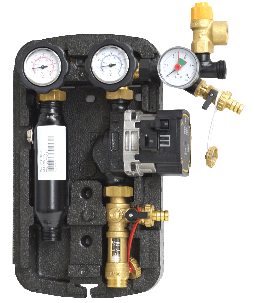

Vertigo DN20
The Vertigo R90/VRD90 DN20 has a flow regulator of 2-12 liters per minute, a safety group 0-10bar and a pressure reducer 6 bar and ball valve with built-in check valve and thermometer. equipped with wall bracket and insulation.
606560Solar group VERTIGO VRD 90 – DN 20 with air separator606566Solar group VERTIGO VRD 90 with pump Grundfos UPM3 SOLAR 15-75 with air separator. 005511 Flow meter 2-12 l/min 005512 Air vent for Vertigo 005513 Safety group
Technical data: Check valve opening: Max Pressure: Max Temperature: HoH:
350 mm H ₂ O
8 bar
120°C
90 mm
8 bar
120°C
90 mm
