PU Polyurethane hose
Polyurethane PU
PU longlife is made from Ester Polyurethane raw material. The hose can be used from -40 to 60°C. PU can be used for compressed air, vacuum and robotics. The couplings are suitable for push-in couplings (in combination with support bushes).
Technical data PU Longlife Density1.21-1.23 g/cm3Hardness49-55 Shore D
Various sizes available from stock on a reel.
Item number SPU0204-100 SPU2504-100 SPU2743-100 SPU0305-100 SPU0406-100* SPU0508-100* SPU5508-100 SPU0608-100* SPU6510-100 SPU0710-100* SPU7510-100* -100 SPU0812-100 SPU0912-100* * delivery from stock
Inner size 2 2.5 2.7 3 4 5 5.5 6 6.5 7 7.5 8 8 9
Colors: ZW- Black HB- Azur blue NA- Natural BL- Blue AR- Orange R- Red GR- Green G- Yellow ZG- Silver gray
Outside size mm 4 4 4.3 5 6 8 8 8 10 10 10 10 12 12

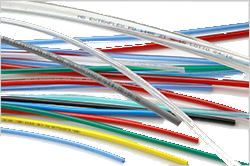

PU is made from Ester Polyurethane raw material. The hose can be used from -40 to 60°C. PU can be used for compressed air, vacuum and water. The couplings are suitable for push-in couplings (in combination with support bushes).
Technical data PU Extraflex 1190 Density1.14-1.16 g/cm3Hardness42-48 Shore D
Colours: NA-Natural other colors on request.
Artikelnummer SPU1503NA1190 SPU16317NA1190 SPU0204NA1190 SPU2504NA1190 SPU2743NA1190 SPU0305NA1190 SPU3206NA1190 SPU3606NA1190 SPU0406NA1190* SPU0408NA1190 SPU0508NA1190 SPU5508NA1190 SPU0608NA1190* SPU0510NA1190 SPU0610NA1190 SPU6510NA1190 SPU0710NA1190* SPU7512NA1190 SPU0812NA1190 SPU8512NA1190 SPU0912NA1190 SPU8514NA1190 SPU9514NA1190 SPU0914NA1190 SPU1014NA1190 SPU1016NA1190 SPU10516NA1190 SPU1116NA1190 SPU1216NA1190 SPU1319NA1190 * uit voorraad leverbaar
Internal size 1.5 1.6 2 2.5 2.7 3 3.2 3.6 4 4 5 5.5 6 5 6 6.5 7 7.5 8 8.5 9 8.5 9.5 9 10 10 10.5 11 12 13
Outside size mm 3 3.17 4 4 4.3 5 6 6 6 8 8 8 8 10 10 10 10 12 12 12 12 14 14 14 14 16 16 16 16 19
