Perskoppeling voor Multilayer
Perskoppeling voor Multilayer

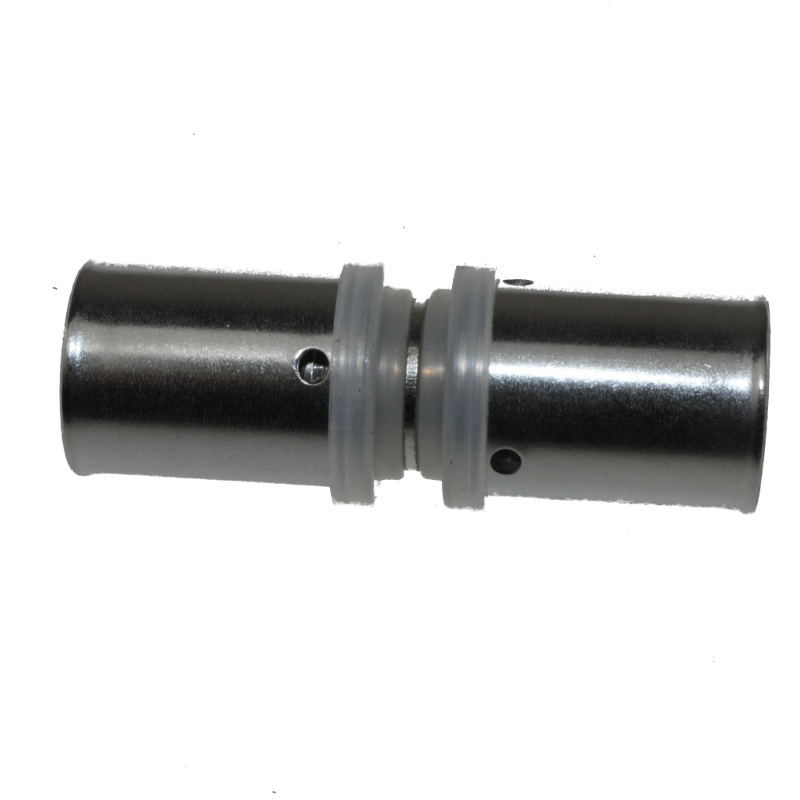

Rechte koppeling / Sok
Gerader Verbinder
Straight Fitting
Artikelnummer
PFM011616NMES
PFM012020NMES
PFM012525NMES
PFM013232NMES
PFM014040NMES
PFM015050NMES
PFM016363NMES
PFM017575NMES
Maat/Größe/Size
16mm x 16mm
20mm x 20mm
25mm x 25mm
32mm x 32mm
40mm x 40mm
50mm x 50mm
63mm x 63mm
75mm x 75mm

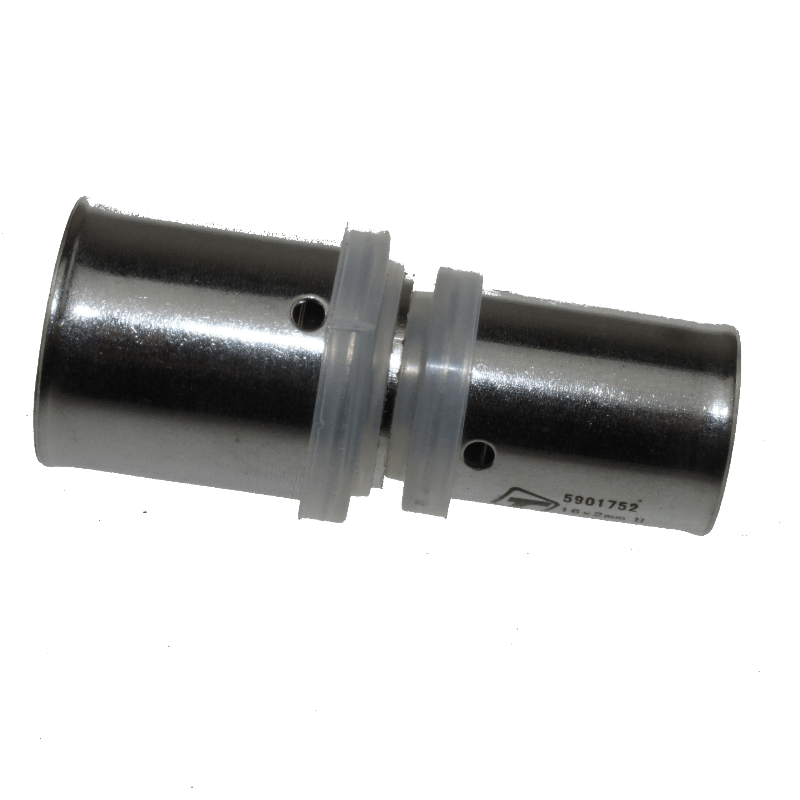

Sok Reduceer
Gerader Verbinder Reduziert
Straight Fitting Reducer
Artikelnummer
PFM012016NMES
PFM012516NMES
PFM013216NMES
PFM012520NMES
PFM013220NMES
PFM013225NMES
PFM014025NMES
PFM014032NMES
PFM015040NMES
PFM016340NMES
PFM016350NMES
PFM017550NMES
PFM017563NMES
Maat/Größe/Size
16mm x 20mm
16mm x 25mm
16mm x 32mm
20mm x 25mm
20mm x 32mm
25mm x 32mm
40mm x 25mm
40mm x 32mm
50mm x 40mm
63mm x 40mm
63mm x 50mm
75mm x 50mm
75mm x 63mm

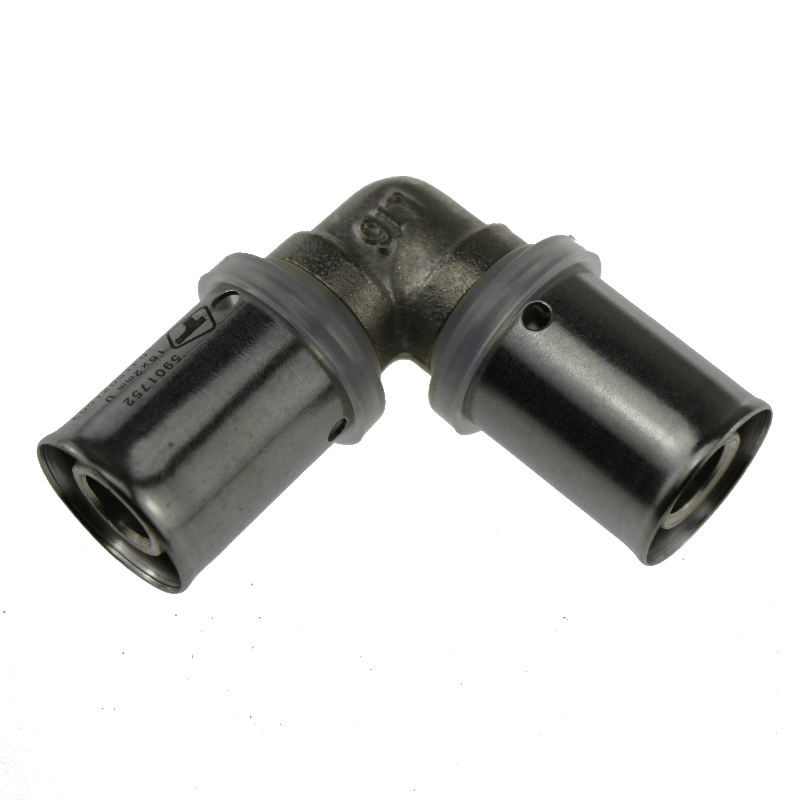

Knie
Winkel
Elbow
Artikelnummer
PFM031616NMES
PFM032020NMES
PFM032525NMES
PFM033232NMES
PFM034040NMES
PFM035050NMES
PFM036363NMES
PFM037575NMES
Maat/Größe/Size
16mm x 16mm
20mm x 20mm
25mm x 25mm
32mm x 32mm
40mm x 40mm
50mm x 50mm
63mm x 63mm
75mm x 75mm
Knie Reduceer
Winkel Reduziert
Elbow Reducer
Artikelnummer
PFM032016NMES
PFM032516NMES
PFM032520NMES
PFM033220NMES
PFM034025NMES
PFM034032NMES
PFM035040NMES
Maat/Größe/Size
20mm x 16mm
25mm x 16mm
25mm x 20mm
32mm x 20mm
40mm x 25mm
40mm x 32mm
50mm x 40mm

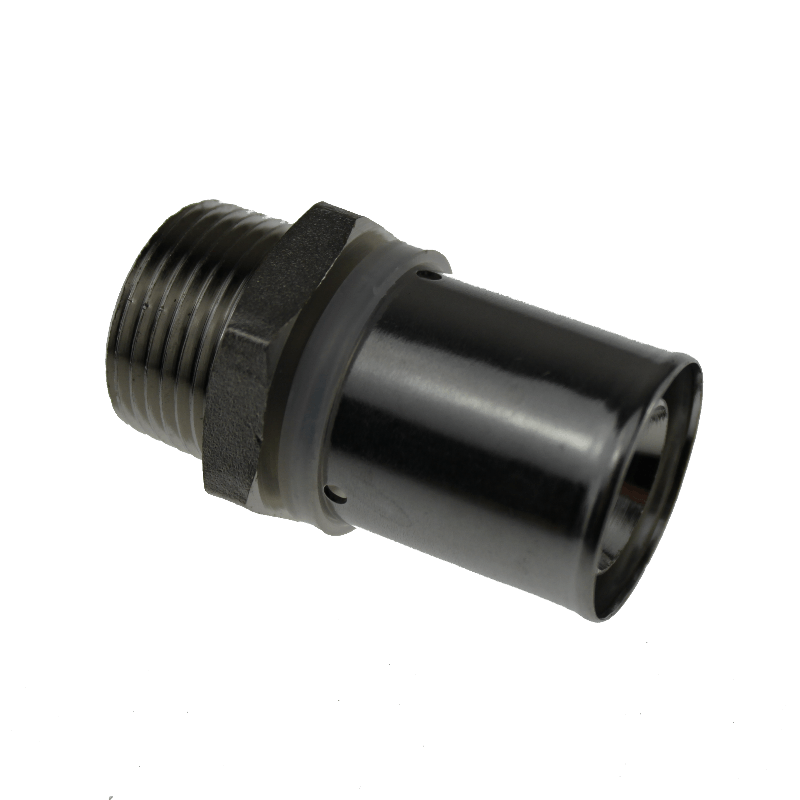

Puntstuk
Einschrauber AG
Male Adapter
Artikelnummer
PFM001604NMES
PFM001605NMES
PFM001606NMES
PFM002004NMES
PFM002005NMES
PFM002006NMES
PFM002504NMES
PFM002505NMES
PFM002506NMES
PFM003205NMES
PFM003206NMES
PFM003207NMES
PFM003208NMES
PFM004007NMES
PFM005008NMES
PFM005009NMES
PFM006309NMES
PFM006310NMES
Maat/Größe/Size
16mm x 1/2"
16mm x 3/4"
16mm x 1"
20mm x 1/2"
20mm x 3/4"
20mm x 1"
25mm x 1/2"
25mm x 3/4"
25mm x 1"
32mm x 3/4''
32mm x 1"
32mm x 1 1/4"
32mm x 1 1/2''
40mm x 1 1/4"
50mm x 1 1/2''
50mm x 2"
63mm x 2"
75mm x 2 1/2''

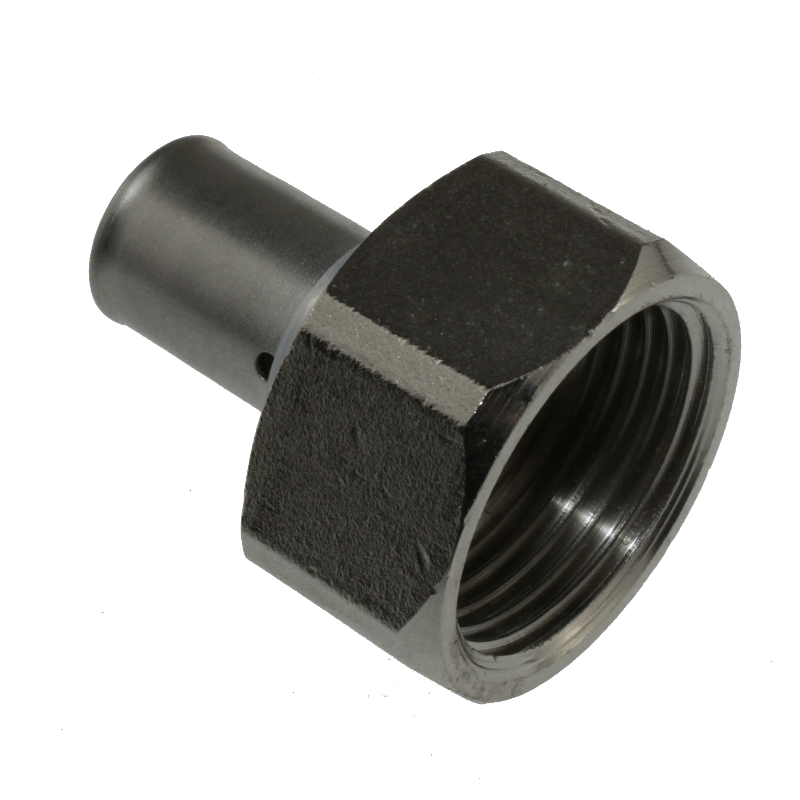

Schroefbus
Aufschrauber IG
Female Adapter
Artikelnummer
PFM021604NMES
PFM021605NMES
PFM021606NMES
PFM022004NMES
PFM022005NMES
PFM022006NMES
PFM022504NMES
PFM022505NMES
PFM022506NMES
PFM023205NMES
PFM023206NMES
PFM024007NMES
PFM025008NMES
PFM026309NMES
Maat/Größe/Size
16mm x 1/2"
16mm x 3/4''
16mm x 1"
20mm x 1/2"
20mm x 3/4''
20mm x 1"
25mm x 1/2"
25mm x 3/4''
25mm x 1"
32mm x 3/4''
32mm x 1"
40mm x 1 1/4"
50mm x 1 1/2"
63mm x 2"

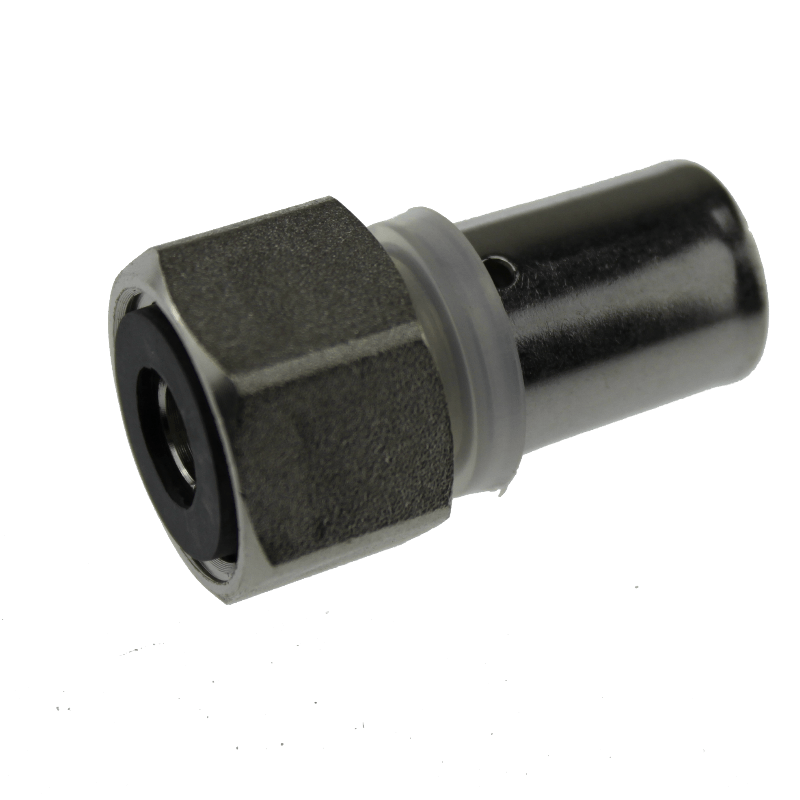

Schroefbus met Wartel
Aufschrauber Drehbar AG
Female Connector Swivel
Artikelnummer
PFM151604NMES
PFM152005NMES
PFM152006NMES
PFM152505NMES
PFM152506NMES
PFM153206NMES
Maat/Größe/Size
16mm x 1/2"
20mm x 3/4''
20mm x 1"
25mm x 3/4''
25mm x 1"
32mm x 1"

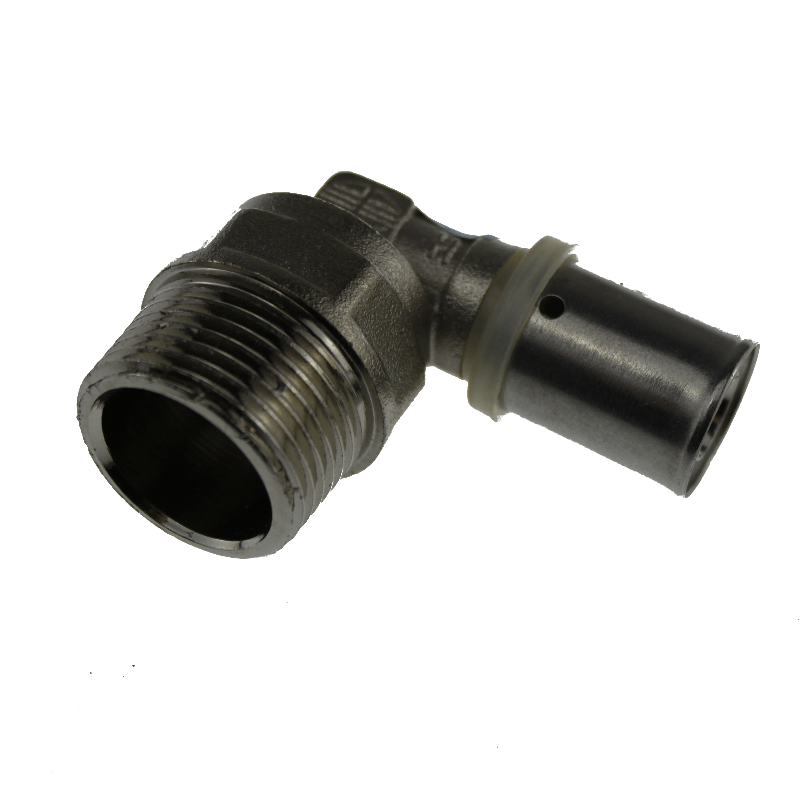

Puntstuk Haaks
Winkel AG
Male Elbow
Artikelnummer
PFM041604NMES
PFM041605NMES
PFM042004NMES
PFM042005NMES
PFM042504NMES
PFM042505NMES
PFM042506NMES
PFM043206NMES
PFM044006NMES
Maat/Größe/Size
16mm x 1/2"
16mm x 3/4''
20mm x 1/2"
20mm x 3/4''
25mm x 1/2"
25mm x 3/4''
25mm x 1"
32mm x 1"
40mm x 1"

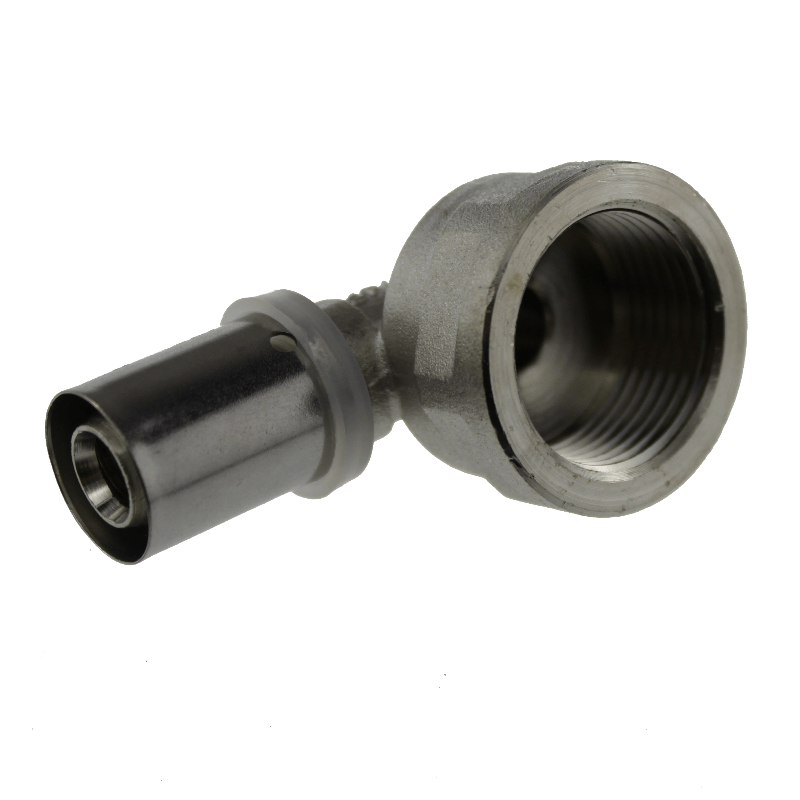

Schroefbus Haaks
Winkel IG
Female Elbow
Artikelnummer
PFM051604NMES
PFM051605NMES
PFM052004NMES
PFM052005NMES
PFM052504NMES
PFM052505NMES
PFM052506NMES
PFM053206NMES
PFM054008NMES
PFM055008NMES
Maat/Größe/Size
16mm x 1/2"
16mm x 3/4''
20mm x 1/2"
20mm x 3/4''
25mm x 1/2"
25mm x 3/4''
25mm x 1"
32mm x 1"
40mm x 1 1/2''
50mm x 1 1/2''
T-Stuk
T-Stück
T-Union
Artikelnummer
PFM0716NMES
PFM0720NMES
PFM0725NMES
PFM0732NMES
PFM0740NMES
PFM0750NMES
PFM0763NMES
PFM0775NMES
Maat/Größe/Size
16mm x 16mm x 16mm
20mm x 20mm x 20mm
25mm x 25mm x 25mm
32mm x 32mm x 32mm
40mm x 40mm x 40mm
50mm x 50mm x 50mm
63mm x 63mm x 63mm
75mm x 75mm x 75mm

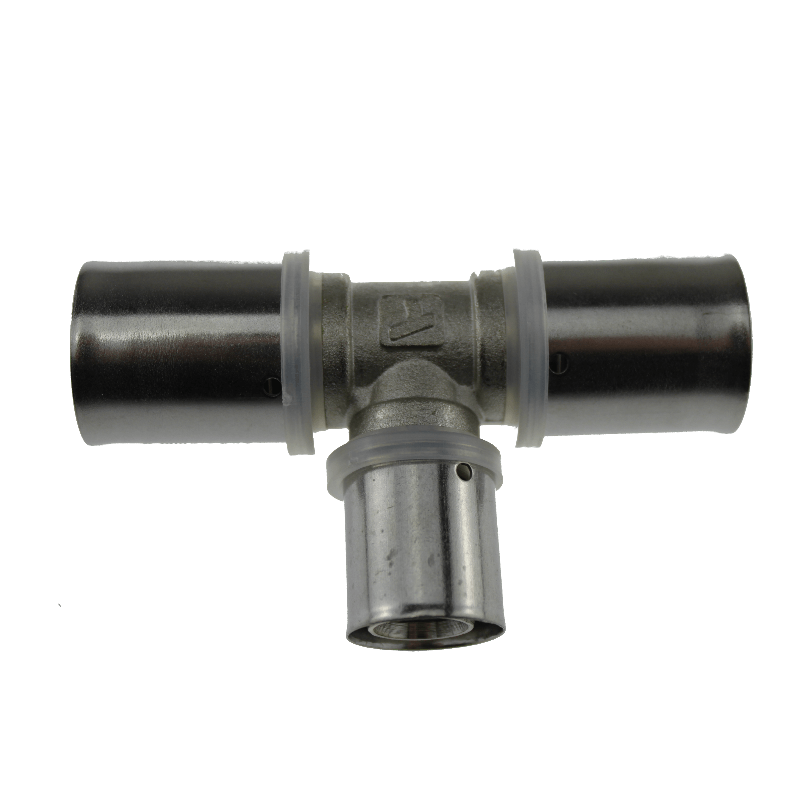

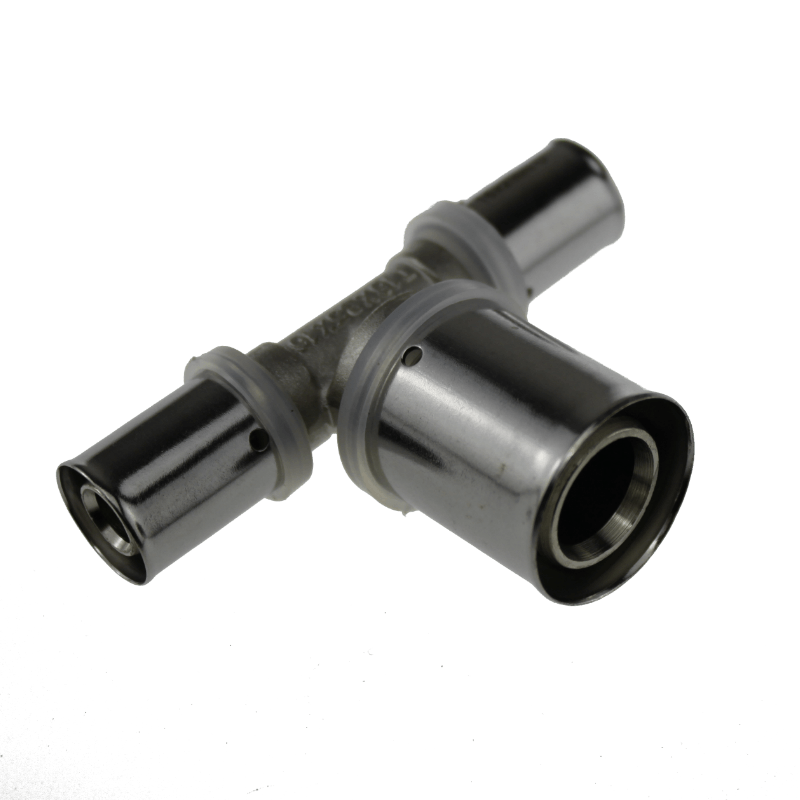

T-Stuk Reduceer
T-Stück Reduziert
T-Union Reducer
Artikelnummer
PFM07162516NMES
PFM07162016NMES
PFM07201616NMES
PFM07201620NMES
PFM07202016NMES
PFM07202520NMES
PFM07251625NMES
PFM07252025NMES
PFM07252020NMES
PFM07252520NMES
PFM07253225NMES
PFM07321632NMES
PFM07322032NMES
PFM07322532NMES
PFM07402540NMES
PFM07403240NMES
PFM07503250NMES
PFM07504050NMES
PFM07634063NMES
PFM07635063NMES
PFM07755075NMES
PFM07756375NMES
Maat/Größe/Size
16mm x 25mm x 16mm
16mm x 20mm x 16mm
20mm x 16mm x 16mm
20mm x 16mm x 20mm
20mm x 20mm x 16mm
20mm x 25mm x 20mm
25mm x 16mm x 25mm
25mm x 20mm x 25mm
25mm x 20mm x 20mm
25mm x 25mm x 20mm
25mm x 32mm x 25mm
32mm x 16mm x 32mm
32mm x 20mm x 32mm
32mm x 25mm x 32mm
40mm x 25mm x 40mm
40mm x 32mm x 40mm
50mm x 32mm x 50mm
50mm x 40mm x 50mm
63mm x 40mm x 63mm
63mm x 50mm x 63mm
75mm x 50mm x 75mm
75mm x 63mm x 75mm

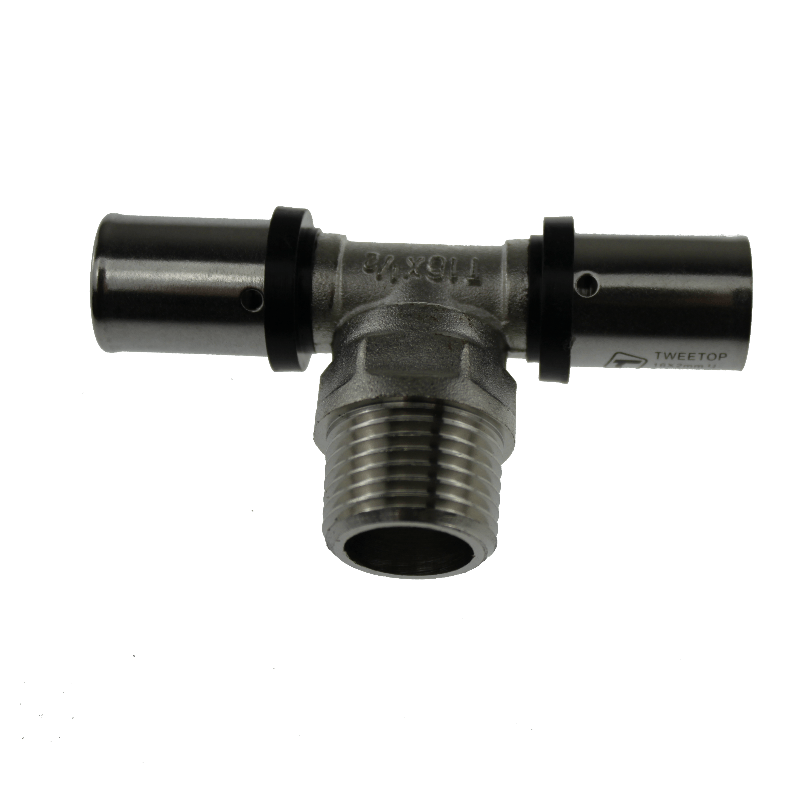

T-Stuk met Buitendraad
T-Stück AG
T-Union Male
Artikelnummer
PFM08160416NMES
PFM08200420NMES
Maat/Größe/Size
16mm x 1/2" x 16mm
20mm x 1/2" x 20mm

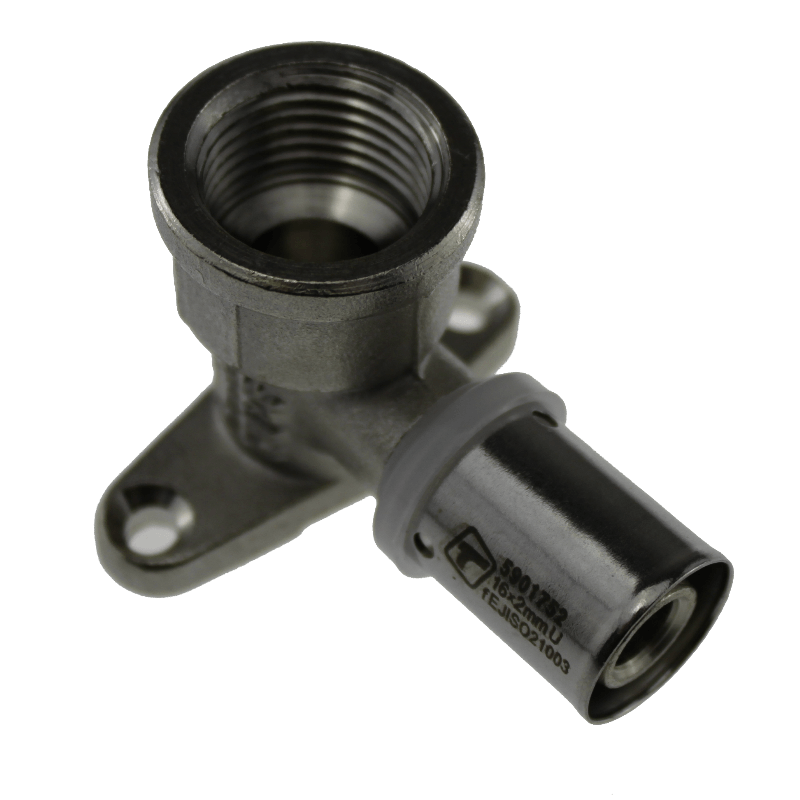

Muurplaat
Wandwinkel
Wallplate
Artikelnummer
PFM061604NMES
PFM062004NMES
Maat/Größe/Size
16mm x 1/2"
20mm x 1/2"

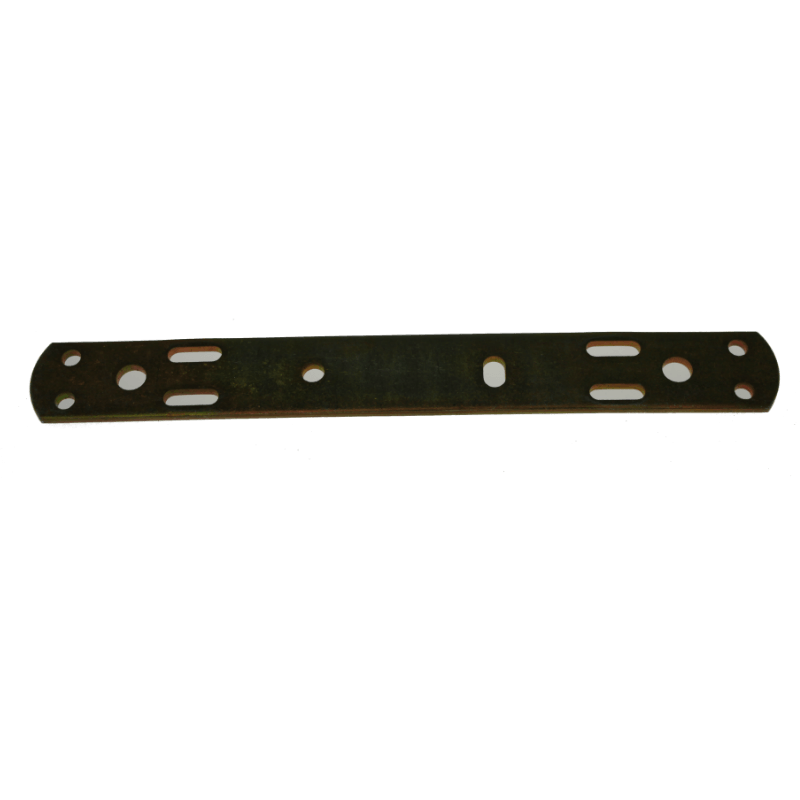

Montageplaat
Montageplatte Wandwinkel
Bracket Twin Wallplate
Artikelnummer
PFM99MONT150XST
Maat/Größe/Size
150mm

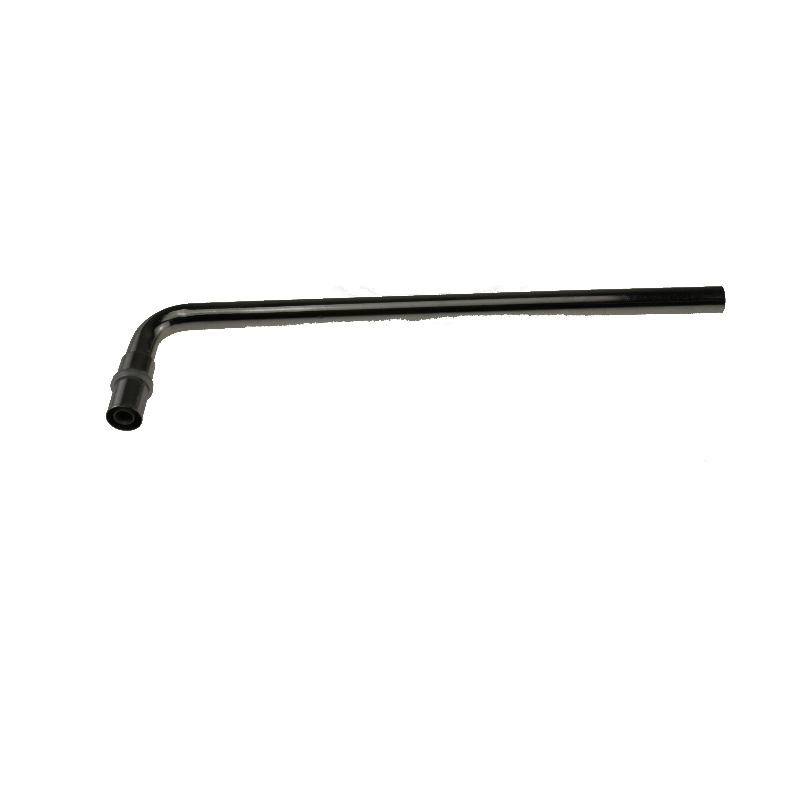

Radiator aansluiting haaks
Radiator Anschluss 90°
Artikelnummer
PFM221615NMES
Maat/Größe/Size
16mm x 15mm knel

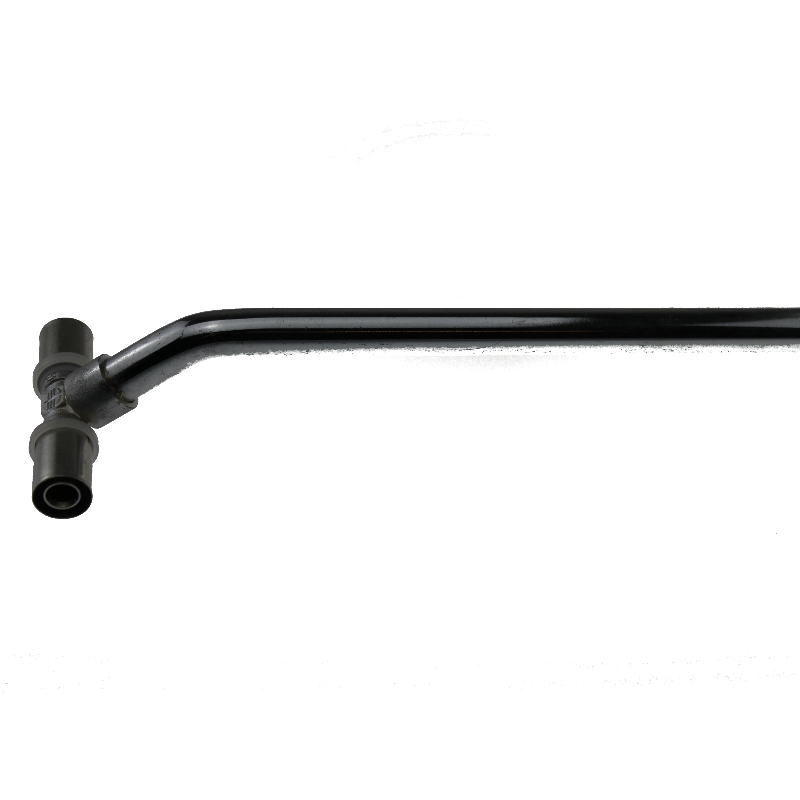

Radiator aansluiting T-Stuk
Radiator Anschluss T-Stück
Artikelnummer
PFM23161516NMES
Maat/Größe/Size
16mm x 15mm knel x 16mm
3D koppeling binnendraad
3D Verbinder IG
3D Female Adapter
Artikelnummer
PFM174008NMES
PFM175008NMES
Maat/Größe/Size
40mm x 1 1/2"
50mm x1 1/2''
3D koppeling buitendraad
3D Verbinder AG
3D Male Adapter
Artikelnummer
PFM174040NMES
PFM175050NMES
Maat/Größe/Size
40mm x 40mm
50mm x 50mm

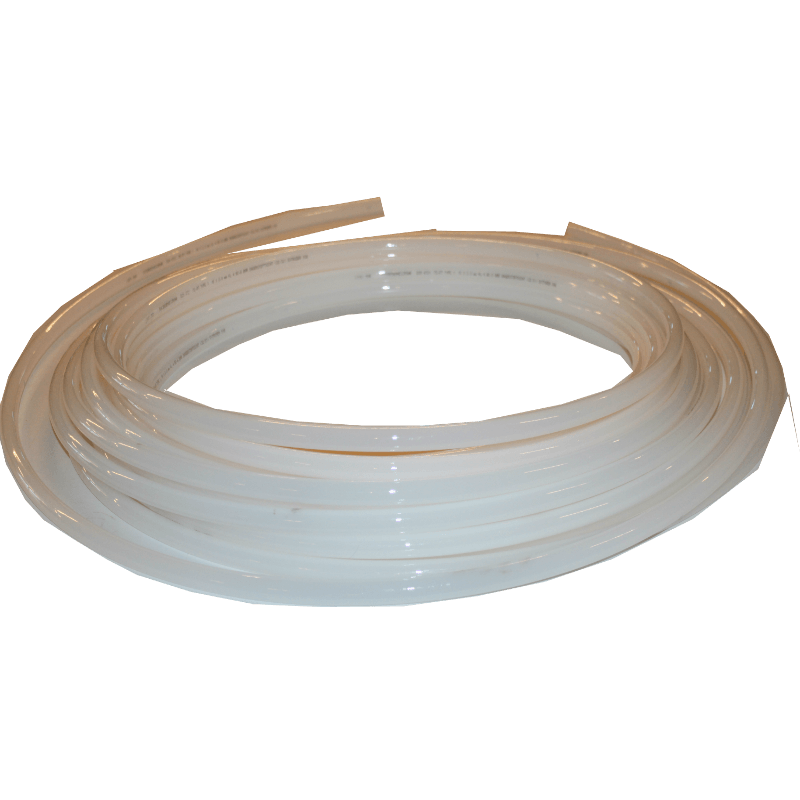

Multilayer PERT/AL/PERT
Mehrschichtenrohr
Multilayer
Artikelnummer
MUL1612WPERT100M
MUL1612WPERT200M
MUL2016WPERT100M
MUL2016WPERT200M
MUL2520WPERT100M
MUL3226WPERT50M
MUL4032WPERT25M
MUL1612WPERT4M
MUL2016WPERT4M
MUL2520WPERT4M
MUL3226WPERT4M
MUL4032WPERT4M
MUL5041WPERT4M
MUL6351WPERT4M
MUL7560WPERT4M
Maat/Größe/Size
16mm x 2mm
16mm x 2mm
20mm x 2mm
20mm x 2mm
25mm x 2,5mm
32mm x 3mm
40mm x 4mm
16mm x 2mm
20mm x 2mm
25mm x 2,5mm
32mm x 3mm
40mm x 4mm
50mm x 4,5mm
63mm x 6mm
75mm x 7,5mm
Pershuls los
Presshülse
Press Fitting ring
Artikelnummer
PFM20PH16
PFM20PH20
PFM20PH25
PFM20PH32
Maat/Größe/Size
16mm
20mm
25mm
32mm
Technische gegevens:
Druk:
Temperatuur:
Persprofiel:
Min 0°C Max 95°C
U
