Plastic distributors heat and cool
Plastic divider
To heat
in
cooling

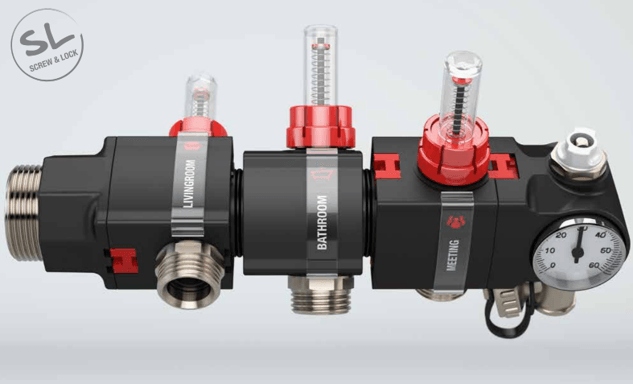

Modular plastic divider
Easily add and remove individual modules
Advantages
- lightweight and robust distributor made of reinforced polyamide ideal for heating and cooling the easiest way to mount a distributor: simply screw & lock installation without special tools slim modern design modular: possibility to add and remove modules self-insulating by integrated air chambers internal insulated pipe outlet all components are sealed thanks to double internal O-rings reversible: main connection left or right optionally at the installation location modules can be rotated up and down clips for labels for labeling the groups 100% tightness test ready for connection and use

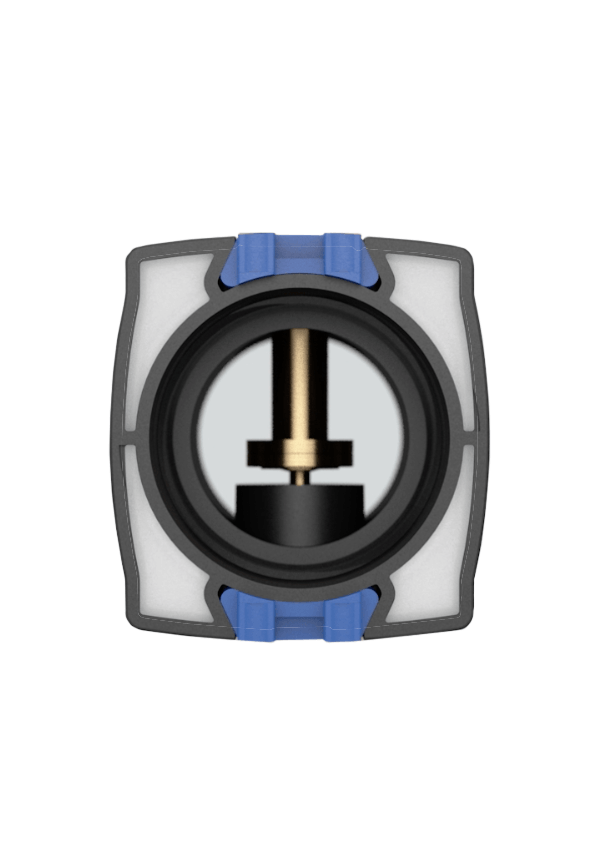

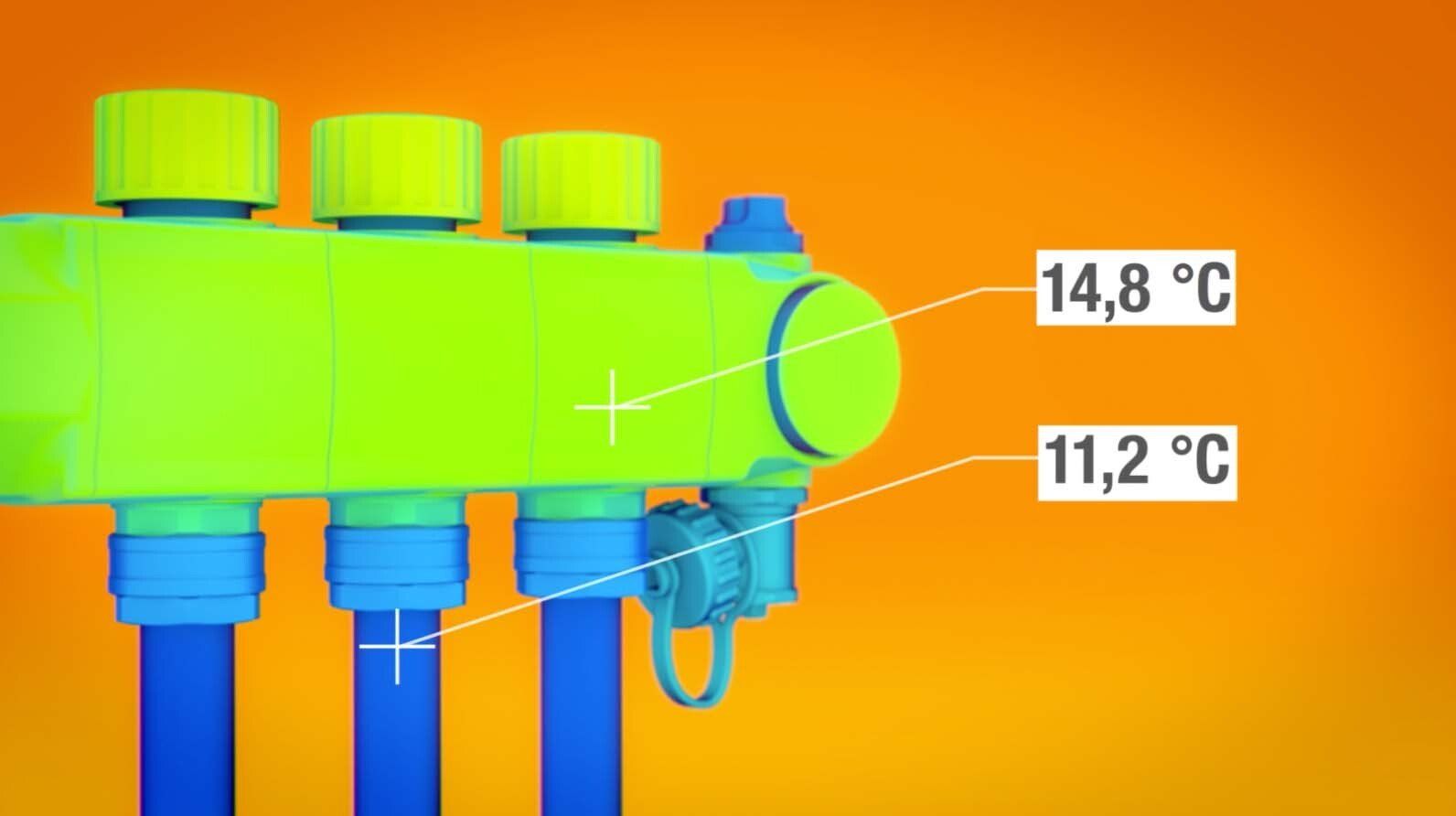

With air chambers
for a
better insulation

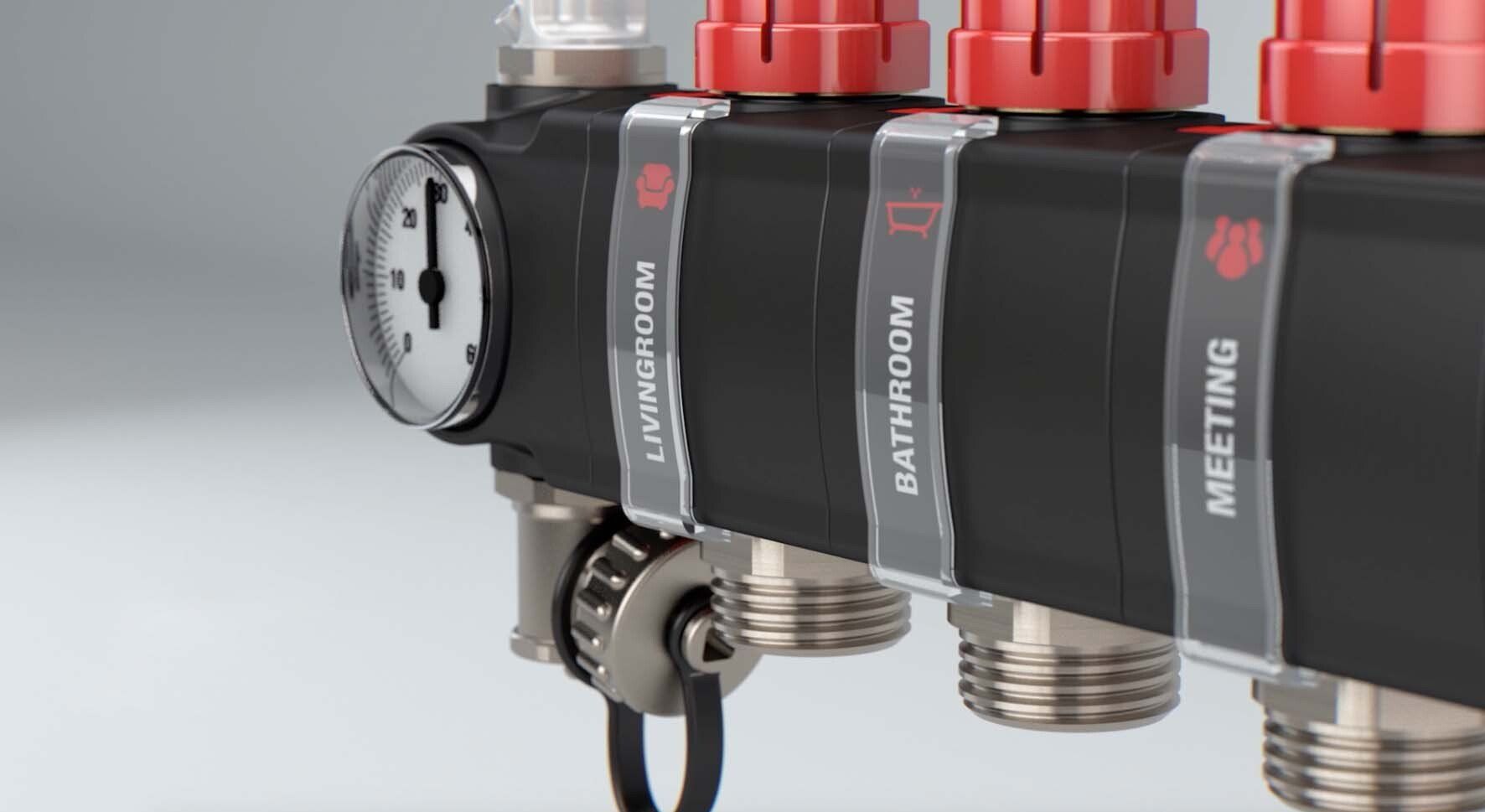

Label Clips
For the names of all groups / rooms.

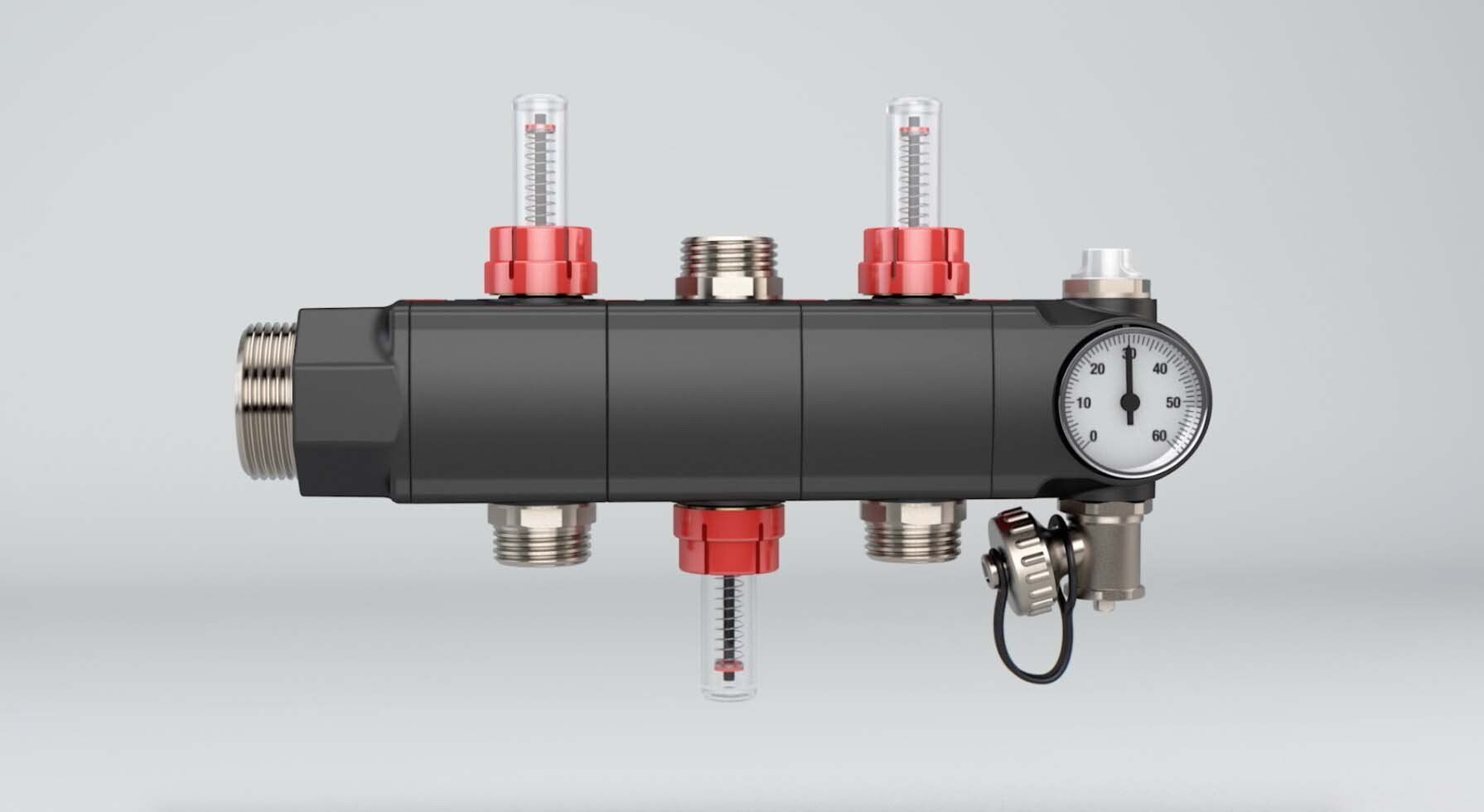

Rotatable Modules
Can also be used upside down.
All components are equipped with a
double o-ring
seal.

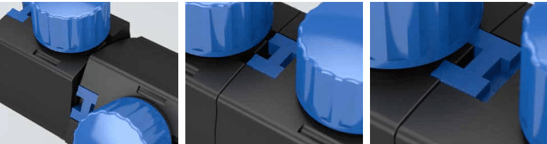

Extra security
door
borgclips

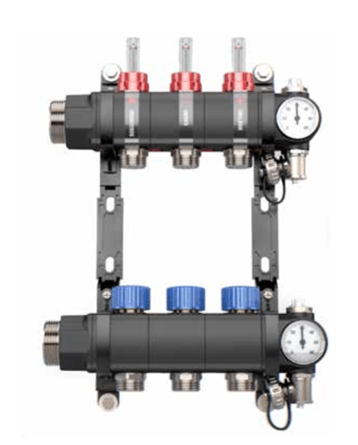

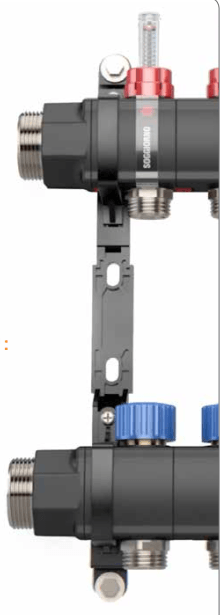

Modular manifold made of glass fiber reinforced polyamide. The manifold is modular and can easily be adjusted to the length and number of connections required. The modification does not require the use of special tools and can be performed on site by simply locking or unlocking the individual modules of the manifold. The hydraulic seal is ensured by generous internal double O-rings.
The modular distributor consists of:
• manual valves with micro metric flow meters for each circuit
• fill/drain tap
• manual air vent
• supply flow meter 0-5 l/min for each circuit / AFC valve
• main supply and return thermometers 0-60°C
• wall mounting brackets
• pipe connections ¾” Euro cone
• main pipe connections 1 ¼” male thread.
| item number | Description |
|---|---|
| EN401002 | 2-fold modular plastic divider |
| EN401003 | 3-fold modular plastic divider |
| EN401004 | 4-fold modular plastic divider |
| EN401005 | 5-way modular plastic divider |
| EN401006 | 6-way modular plastic divider |
| EN401007 | 7-fold modular plastic divider |
| EN401008 | 8-fold modular plastic divider |
| EN401009 | 9-fold modular plastic divider |
| EN401010 | 10-way modular plastic divider |
| EN401011 | 11-fold modular plastic divider |
| EN401012 | 12-way modular plastic divider |
| EN401013 | 13-fold modular plastic divider |
| EN401014 | 14-fold modular plastic divider |
| EN401015 | 15-fold modular plastic divider |
For more information about the other distributors
