Stainless steel dividers
DIVIDERS STAINLESS STEEL
Stainless steel distributors are equipped with flow meters, actuator connection, bracket, bleeder-filling tap, and Euroconus connection.
Distributor equipped with: Flow meters' Actuator connection End cap (2x) Manual air vent Filling tap Bracket (Steel)
Article number AP0020002 AP0020003 AP0020004 AP0020005 AP0020006 AP0020007 AP0020008 AP0020009 AP0020010 AP0020011 AP0020012
Groups 2 3 4 5 6 7 8 9 10 11 12
Maat 1"x EC 3/4" 1"x EC 3/4" 1"x EC 3/4" 1"x EC 3/4" 1"x EC 3/4" 1"x EC 3/4" 1 1"x EC 3/4" 1"x EC 3/4" 1"x EC 3/4" 1"x EC 3/4" 1"x EC 3/4"
Connection options and parts

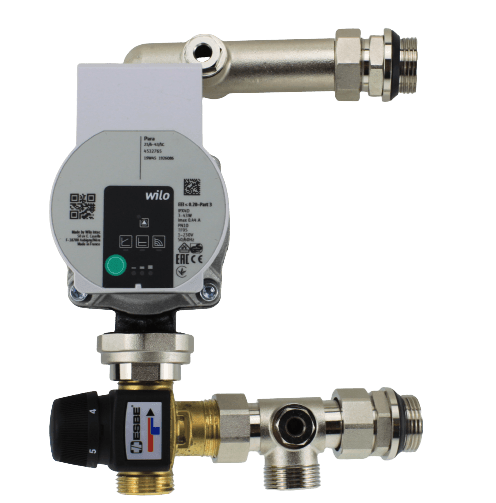

AP00000003 Pump mix set 23-43 degrees Equipped with Wilo Pump Thermometers ESBE valve
UHF699541 Mix pump set mini with Wilo Yonos Para RS15/6 pump and ESBE Mixing machine. This pump set can be connected without a distributor for 2 groups of underfloor heating. Until end of stock
3-way manifold connection For connecting filling valve 1/2"F and air vent 3/8"F
Article number MAM005 MAM006 MAM007
Size 3/4" 1" 11/4"
Thermometer holder for 3/8" thermometer
Article number MATM006 MATMC006 MATM007 THMA03
Size 1" 1" Nickel-plated brass 11/4" 0-80°C ø40mm 3/8" immersion tube
3D ball valve with o-ring
Article number KKV09805OR-B KKV09805OR-R KKV0980506OR-S Set 2 pieces KKV0980506OR-B KKV0980506OR-R KKV09806OR-S Set 2 pieces KKV09806OR-B KKV09806OR-R Also available in 11/4" on request
Size 3/4" 3/4" 3/4"x1" 3/4"x1" 3/4"x1" 1" 1" 1"
Color Blue Red Blue/Red Blue Red Blue/Red Blue Red
3D Ball valve angled
Artikelnummer
KKV29805OR-B
KKV29805OR-R
KKV29806OR-B
KKV29806OR-R
KKV29805OR-S Set 2 stuks
KKV29805OR-B
KKV29805OR-R
KKV29806OR-B
KKV29806OR-R
KKV29805OR-S Set 2 stuks
Size 3/4" 3/4" 1" 1" 1"
Color Blue Red Blue Red Blue/Red
3D Ball valve with thermometer
Artikelnummer
KKV29805OR-B
KKV29805OR-R
KKV29806OR-B
KKV29806OR-R
KKV29805OR-S Set 2 stuks
KKV29805OR-B
KKV29805OR-R
KKV29806OR-B
KKV29806OR-R
KKV29805OR-S Set 2 stuks
Size 3/4" 3/4" 1" 1" 1"
Color Blue Red Blue Red Blue/Red
3D Ball valve with thermometer at right angles
Item number KKV48706OR-S Set 2 Pieces
Size 1"
Color Blue/Red
3D Ball valve without O-ring connection. Suitable for 1" thermometer connection
Article number KKV09806OR-ZB KKV09806OR-ZR
Maat
1"F x11/4"M
1"F x11/4"M
1"F x11/4"M
1"F x11/4"M
Color Blue Red
3D Ball valve angled without O-ring connection
Article number KKV29805OR-ZB KKV29805OR-ZR KKV29806OR-ZB KKV29806OR-ZR
Maat
3/4"x 1"M
3/4"x 1"M
1"F x11/4"M
1"F x11/4"M
3/4"x 1"M
3/4"x 1"M
1"F x11/4"M
1"F x11/4"M
Color Blue Red Blue Red
Thermometer connection complete with thermometer
Article number KTM492BC Suitable for ball valve KKV098ZB-298ZB Body Nickel-plated brass Thermometer diameter 40mm Pressure 10bar Available in 11/4" on request
Size 1"M x 11/4"F
Plug met o-ring
Article number R1882G0004 R1882G0005 R1882G0006
Size 1/2" 3/4" 1"
Reduceerring met o-ring
Artikelnummer
R1881G0503
R1881G0504
R1881G0603
R1881G0604
R1881G0605
R1881G0503
R1881G0504
R1881G0603
R1881G0604
R1881G0605
Size 3/4"x3/8" 3/4"x1/2" 1"x3/8" 1"x1/2" 1"x3/4"
Adapter for plastic hose
ArtikelnummerADE04PN1220
ADE04PN1420
ADE04PN1520
ADE05PN1525
ADE05PN1620
ADE05PN1720
ADE05PN1820
ADE05PN2020
ADE05PN20225
ADE04PN1420
ADE04PN1520
ADE05PN1525
ADE05PN1620
ADE05PN1720
ADE05PN1820
ADE05PN2020
ADE05PN20225
Maat1/2x(12x2,0)
1/2x(14x2,0)
1/2x(15x2,0)
3/4x(15x2,5)
3/4x(16x2,0)
3/4x(17x2,0)
3/4x(18x2,0)
3/4x(20x2,0)
3/4x(20x2,25)
1/2x(14x2,0)
1/2x(15x2,0)
3/4x(15x2,5)
3/4x(16x2,0)
3/4x(17x2,0)
3/4x(18x2,0)
3/4x(20x2,0)
3/4x(20x2,25)
Adapter for Multilayer
Article number ADE04M1620 ADE05M1620 ADE05M1620M ADE05M1720 ADE05M2020 ADE05M2020E ADE05M20225
Maat
1/2"x(16x2,0)
3/4"x(16x2,0)
3/4"x(16x2,0) Messing
3/4"x(17x2,0)
3/4"x(20x2,0)
3/4"x(20x2,0) Messing
3/4"x(20x2,25)
1/2"x(16x2,0)
3/4"x(16x2,0)
3/4"x(16x2,0) Messing
3/4"x(17x2,0)
3/4"x(20x2,0)
3/4"x(20x2,0) Messing
3/4"x(20x2,25)
Technical data distributors: Allowed fluid: Operating temperature: Maximum temperature: Normal operating pressure: Max Pressure: Distance of outlets: Wall bracket: Depth: Flow meter:
Water, Glycol solutions Max 50% 5-80°C 90°C at 3 Bar 0-6 Bar 8 Bar 50mm Steel 76mm 0-5l/min
Flow regulator The flow regulator is supplied with a flow adjustment key. To adjust the system, turn the adjustment key clockwise to the point of maximum opening, corresponding to the red indicator in the 5 l/min position. To close the flow meter, turn the key until the red indicator is at 0l/min.
For more information about the other distributors
